Tutorial

ここはチュートリアルです。

_images/ipconfig.png

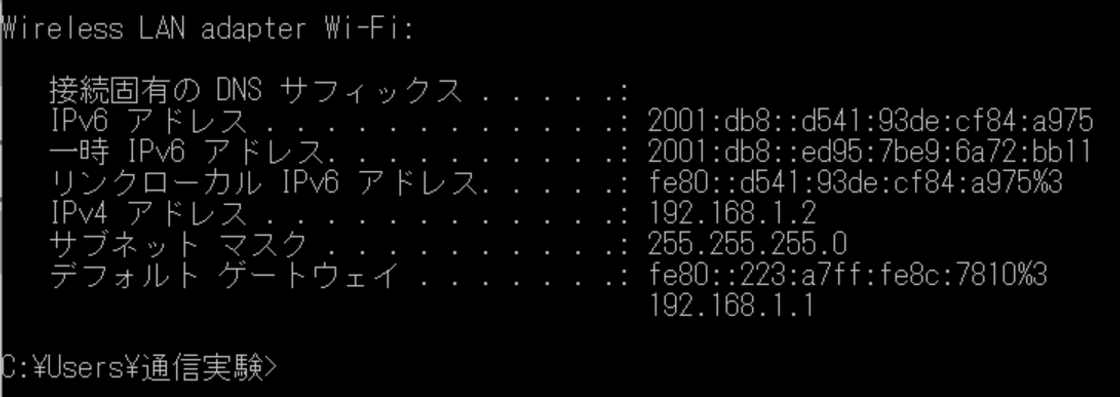

This is ipconfig img

図 1 ipconfigによるIPアドレスの表示 (クリックすると拡大します)

https://ss.istlab.info/ が、講義システムになります。

ipconfigによるIPアドレスの表示 (クリックすると拡大します) に、ipconfigによるIPアドレスの表示を示します。

注釈

図への参照は、同一ファイル内からしかできない？？

図表番号は、pip3 install sphinx-numfig をすれば、つくようです。

図表番号を参照するときは、図 1 のように、numref をつかいます。参考サイト：https://sphinx-users.jp/reverse-dict/images/numbering.html

図 1 だと、番号がつく？ →結果として、ついた。

図 1 ipconfigによるIPアドレスの表示 (クリックすると拡大します) のようにすれば、番号とキャプションが両方はいります。

The reStructuredText Cheat Sheet: Syntax Reminders

Info:See <http://docutils.sf.net/rst.html> for introductory docs.
Author:David Goodger <goodger@python.org>
Date:$Date: 2013-02-20 02:10:53 +0100 (Mi, 20. Feb 2013) $
Revision:$Revision: 7612 $
Description:This is a "docinfo block", or bibliographic field list

注釈

If you are reading this as HTML, please read cheatsheet.txt instead to see the input syntax examples!

Section Structure

Section titles are underlined or overlined & underlined.

Body Elements

Grid table:

Paragraphs are flush-left, separated by blank lines.

Block quotes are indented.

Literal block, preceded by "::":

Indented

or:

> Quoted

>>> print 'Doctest block'
Doctest block
Line blocks preserve line breaks & indents. [new in 0.3.6]
Useful for addresses, verse, and adornment-free lists; long lines can be wrapped with continuation lines.

Simple tables:

List Type Examples (syntax in the text source)
Bullet list
  • items begin with "-", "+", or "*"
Enumerated list
  1. items use any variation of "1.", "A)", and "(i)"
  2. also auto-enumerated
Definition list
Term is flush-left : optional classifier
Definition is indented, no blank line between
Field list
field name:field body
Option list
-o at least 2 spaces between option & description
Explicit Markup Examples (visible in the text source)
Footnote
[1]Manually numbered or [#] auto-numbered (even [#labelled]) or [*] auto-symbol
Citation
[CIT2002]A citation.
Hyperlink Target
Anonymous Target
Directive ("::") _images/biohazard.png
Substitution Def
Comment
Empty Comment (".." on a line by itself, with blank lines before & after, used to separate indentation contexts)

Inline Markup

emphasis; strong emphasis; interpreted text; interpreted text with role; inline literal text; standalone hyperlink, http://docutils.sourceforge.net; named reference, reStructuredText; anonymous reference; footnote reference, [1]; citation reference, [CIT2002]; like an inline directive; inline internal target.

Directive Quick Reference

See <http://docutils.sf.net/docs/ref/rst/directives.html> for full info.

Directive Name Description (Docutils version added to, in [brackets])
attention Specific admonition; also "caution", "danger", "error", "hint", "important", "note", "tip", "warning"
admonition Generic titled admonition: .. admonition:: By The Way
image .. image:: picture.png; many options possible
figure Like "image", but with optional caption and legend
topic .. topic:: Title; like a mini section
sidebar .. sidebar:: Title; like a mini parallel document
parsed-literal A literal block with parsed inline markup
rubric .. rubric:: Informal Heading
epigraph Block quote with class="epigraph"
highlights Block quote with class="highlights"
pull-quote Block quote with class="pull-quote"
compound Compound paragraphs [0.3.6]
container Generic block-level container element [0.3.10]
table Create a titled table [0.3.1]
list-table Create a table from a uniform two-level bullet list [0.3.8]
csv-table Create a table from CSV data [0.3.4]
contents Generate a table of contents
sectnum Automatically number sections, subsections, etc.
header, footer Create document decorations [0.3.8]
target-notes Create an explicit footnote for each external target
math Mathematical notation (input in LaTeX format)
meta HTML-specific metadata
include Read an external reST file as if it were inline
raw Non-reST data passed untouched to the Writer
replace Replacement text for substitution definitions
unicode Unicode character code conversion for substitution defs
date Generates today's date; for substitution defs
class Set a "class" attribute on the next element
role Create a custom interpreted text role [0.3.2]
default-role Set the default interpreted text role [0.3.10]
title Set the metadata document title [0.3.10]

Interpreted Text Role Quick Reference

See <http://docutils.sf.net/docs/ref/rst/roles.html> for full info.

Role Name Description
emphasis Equivalent to emphasis
literal Equivalent to literal but processes backslash escapes
math Mathematical notation (input in LaTeX format)
PEP Reference to a numbered Python Enhancement Proposal
RFC Reference to a numbered Internet Request For Comments
raw For non-reST data; cannot be used directly (see docs) [0.3.6]
strong Equivalent to strong
sub Subscript
sup Superscript
title Title reference (book, etc.); standard default role
